Compact Sand Plants

Maximum Efficiency From Your Washing Plant

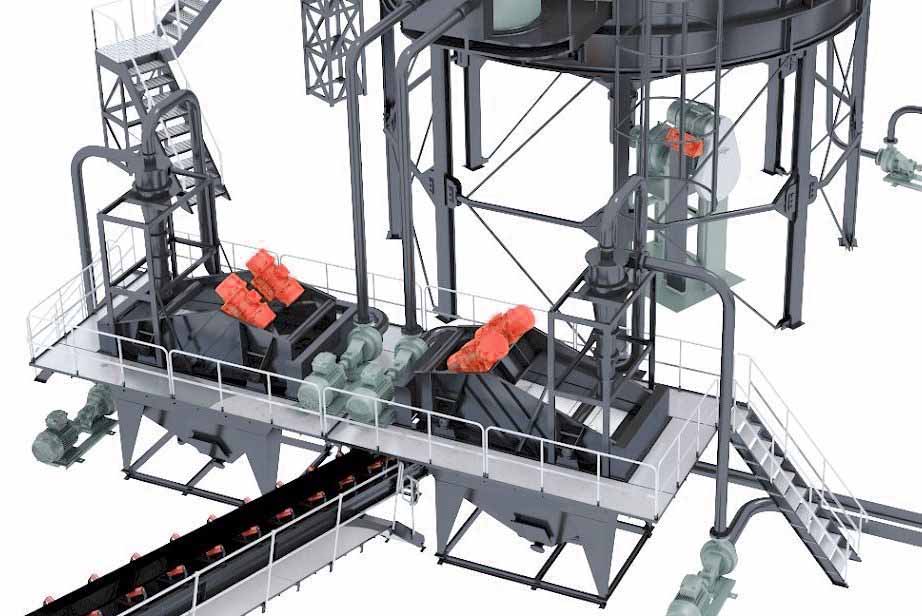

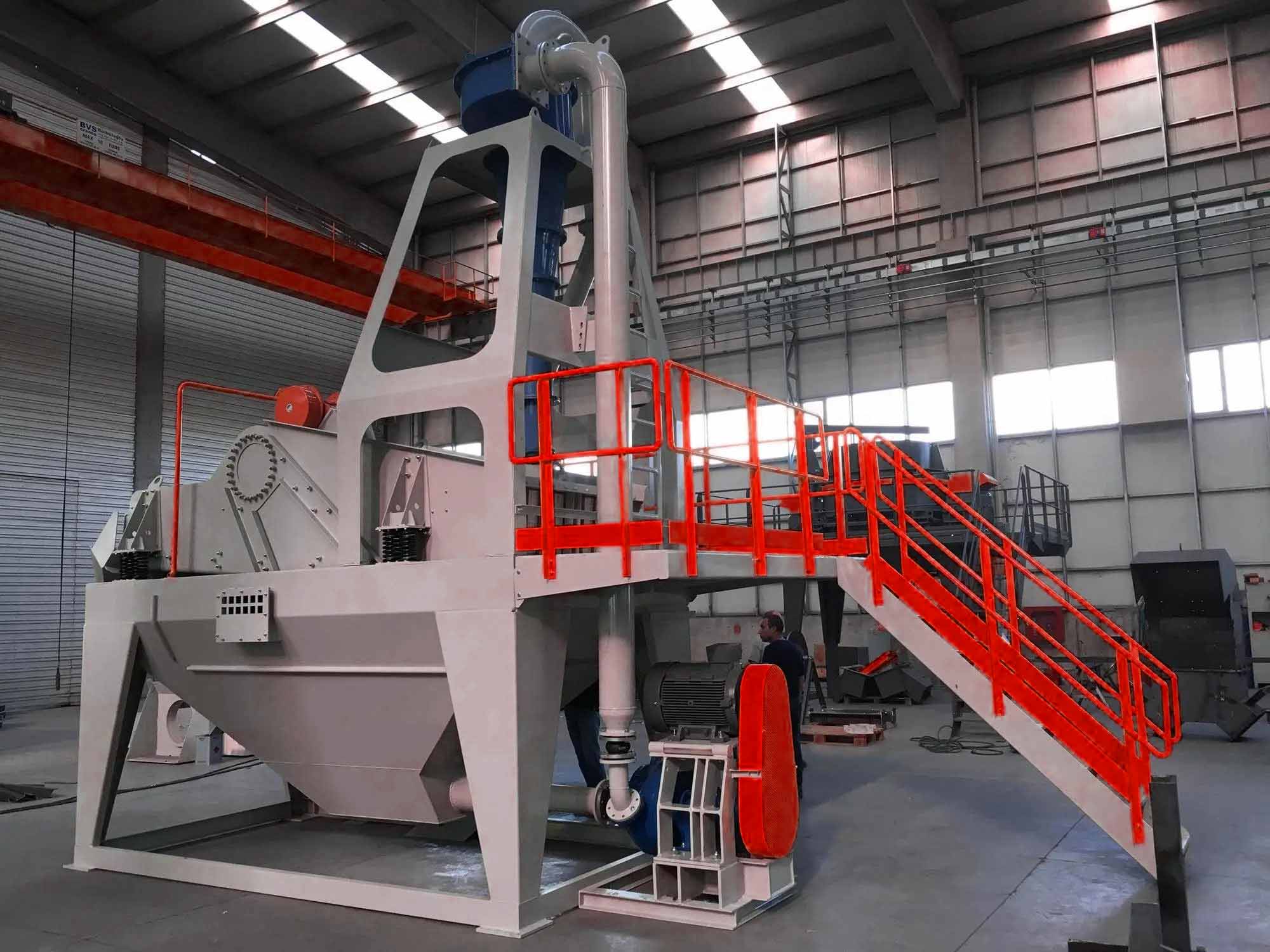

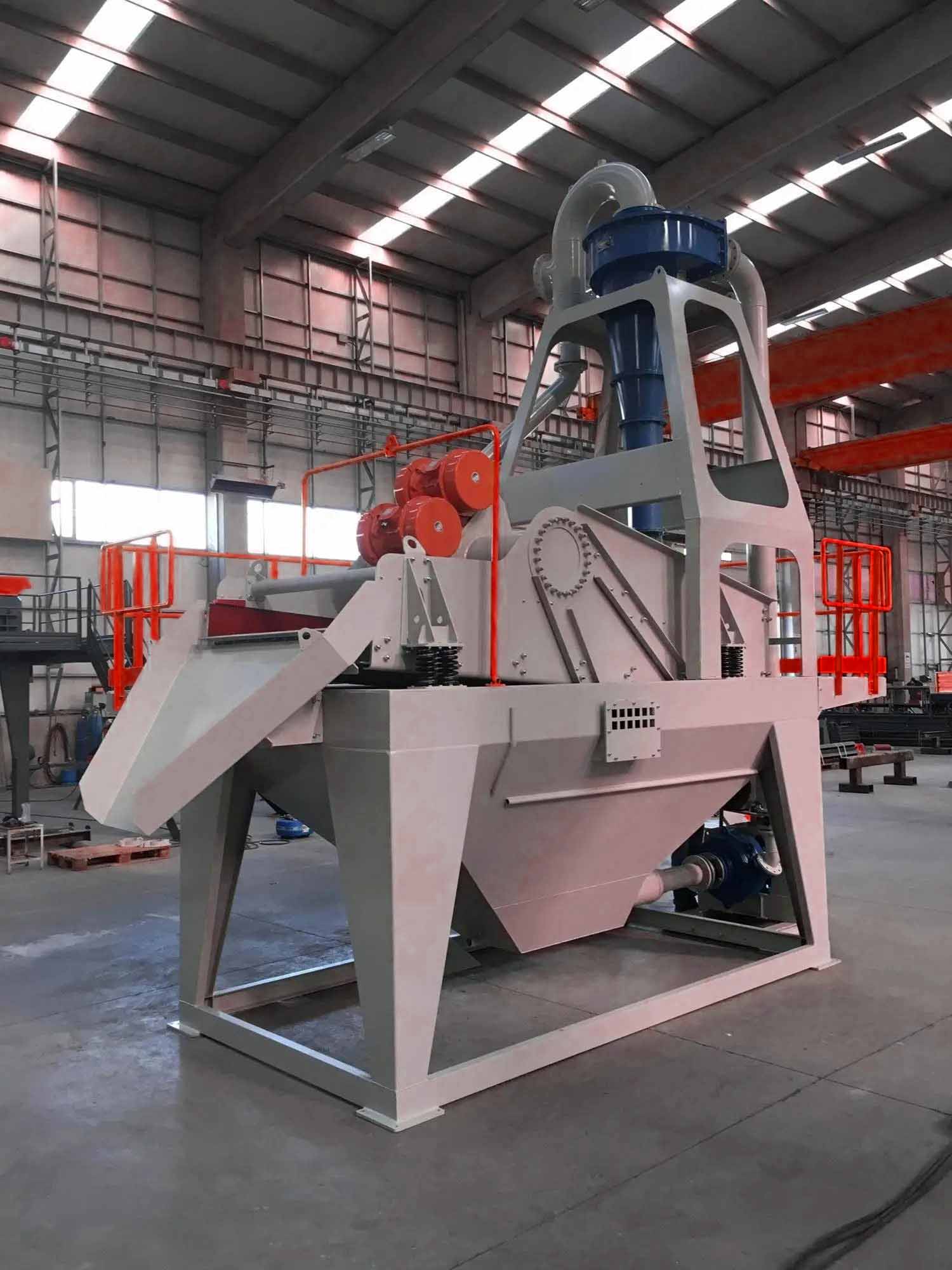

Compact sand plants are designed for aggregate producers requiring a fines recovery plant to support their existing operations by reducing the volume of fine material reporting to the settling pond. The range uses centrifugal force within the cyclone(s) to remove clay, silt and slime from sand to bring it into specification and combines a collection tank, centrifugal slurry pump(s), hydrocyclone(s) and a dewatering screen on a single chassis.

Features

APPLICATIONS

Gravel and concrete sand industries, The production of industrial sands, The treatment of polluted soils (rehabilitation of industrial sites, dredging of rivers or harbours, etc.).

RECOVERY

Can recover 1 or 2 grades of sand from wet feed
• Maximum recovery of all material above 75 μm (200 mesh) providing major reduction in fine material discharging to the water management system, thus reducing recovery cycle and saving money

MODULAR MEDIA

• High frequency dewatering screen with polyurethane modular media reduces residual water content in your final product to 10–15%, ready for market straight from the belt conveyors.

EASY TO ASSEMBLE

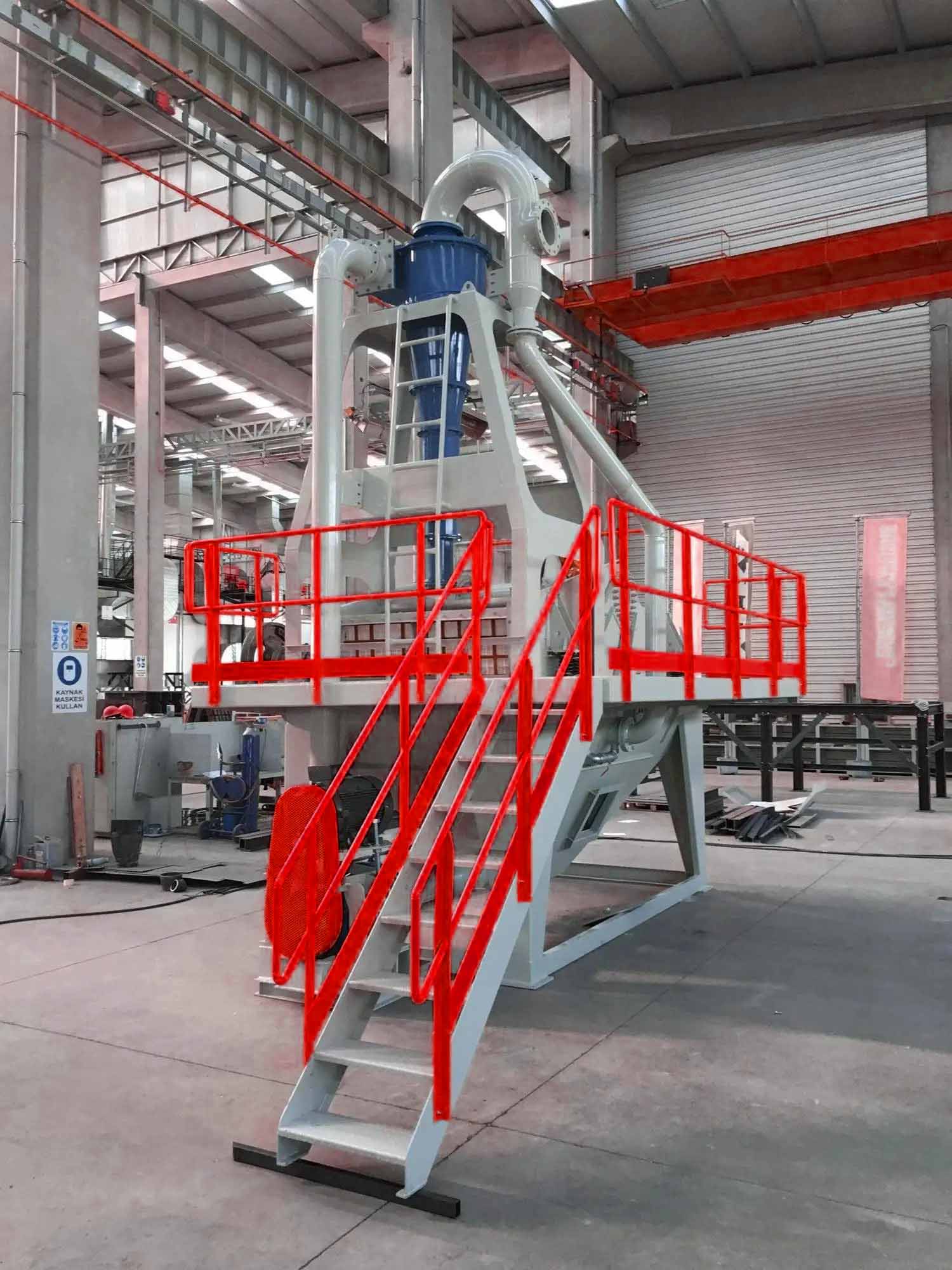

Robust steel construction complete with galvanized walkway & handrails provide easy access
• All electric plant pre-wired to control panel or isolators to integrate with other equipment • Breaks down into a single container for transport

MAINTENANCE

• Pumps and cyclones have replaceable liners for extended wear life

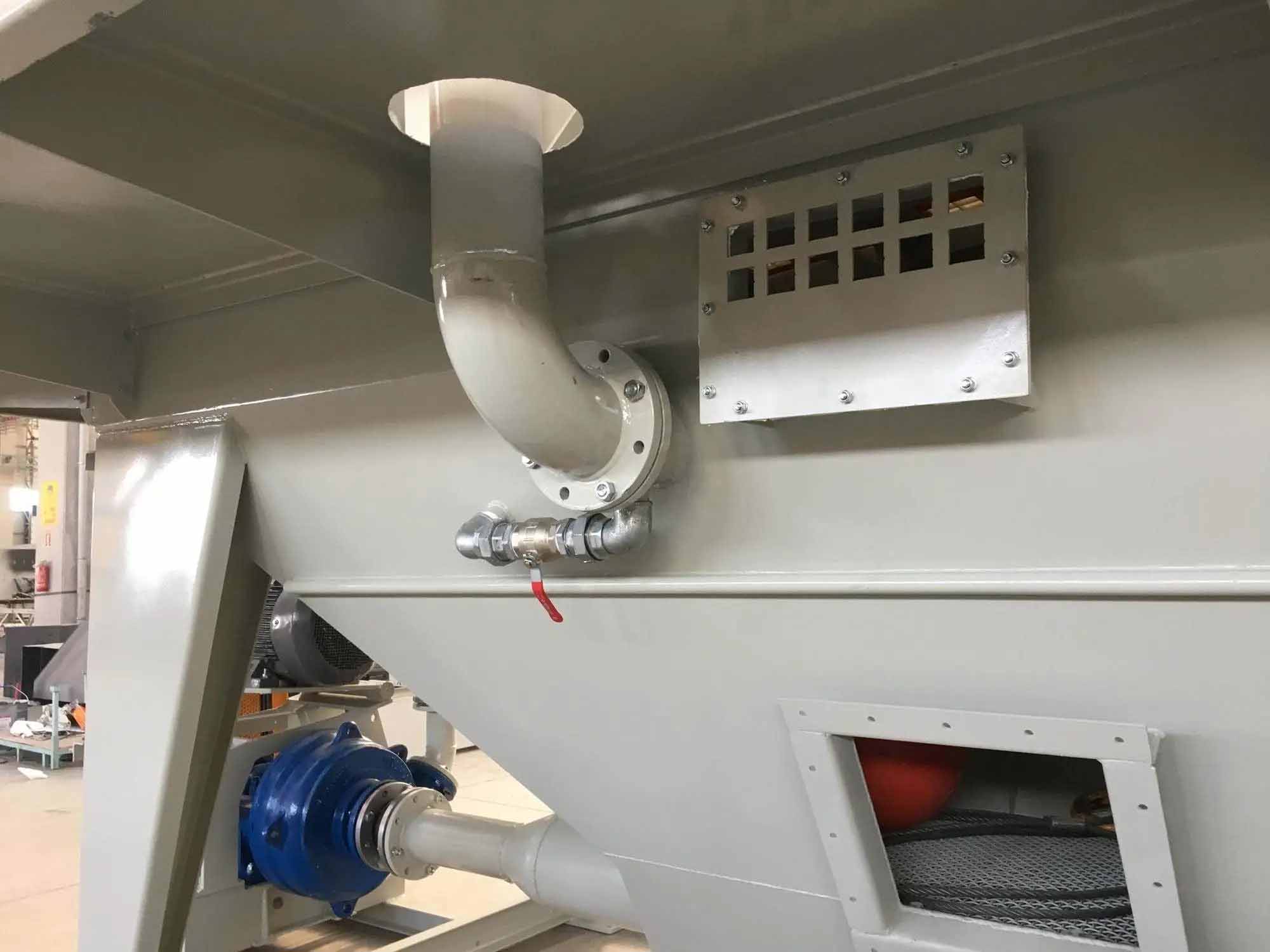

• Low maintenance and simple operation with self regulating cyclone tank with built in float system •

MODELS AND SPECIFICATIONS

Imperial

Metric

			Fluid Requirements		Hydrocyclone Sizes	DW Screen Motor	DW Screen Size	Pump inlet/outlet	Pump Motor	System Weight
	mtph	stph	gal/min	m3/h	inch	HP	feet	inch	HP	lb	kg
ASP70	70	77	440-880	140-200	20	2x5	4x8	8”/6”	40	13450	6100
ASP100	100	110	880-1540	200 - 350	26	2x7	6x8	8”/6”	50	18100	8200
ASP150	150	165	1320-1980	300 - 450	2X20	2x10	6x8	10”/8”	75	18700	8500
ASP200	200	220	2640	600	2x26	2x10	6x13	10”/8”	100	22000	10000
ASP250	250	275	3300	750	2x26	2x10	6x13	12”/10”	125	22500	10200

	Maximum Capacity	Fluid Requirements	Hydrocyclone Sizes	DW Screen Motor	DW Screen Size	Pump inlet/outlet	Pump Motor	System Weight
	mtph	m3/h	mm	kW	mm	inch	kW	kg
ASP70	70	140-200	500	2x3.6	1200x2400	8"/6"	30	6100
ASP100	100	200 - 350	660	2x7.5	1800x2400	8"/6"	37	8200
ASP150	150	300 - 450	2x500	2x7.5	1800x2400	10"/8"	45	8500
ASP200	200	600	2x660	2x9	1800x4000	10"/8"	75	10000
ASP250	250	750	2x660	2x9	1800x4000	12"/10"	90	10200
